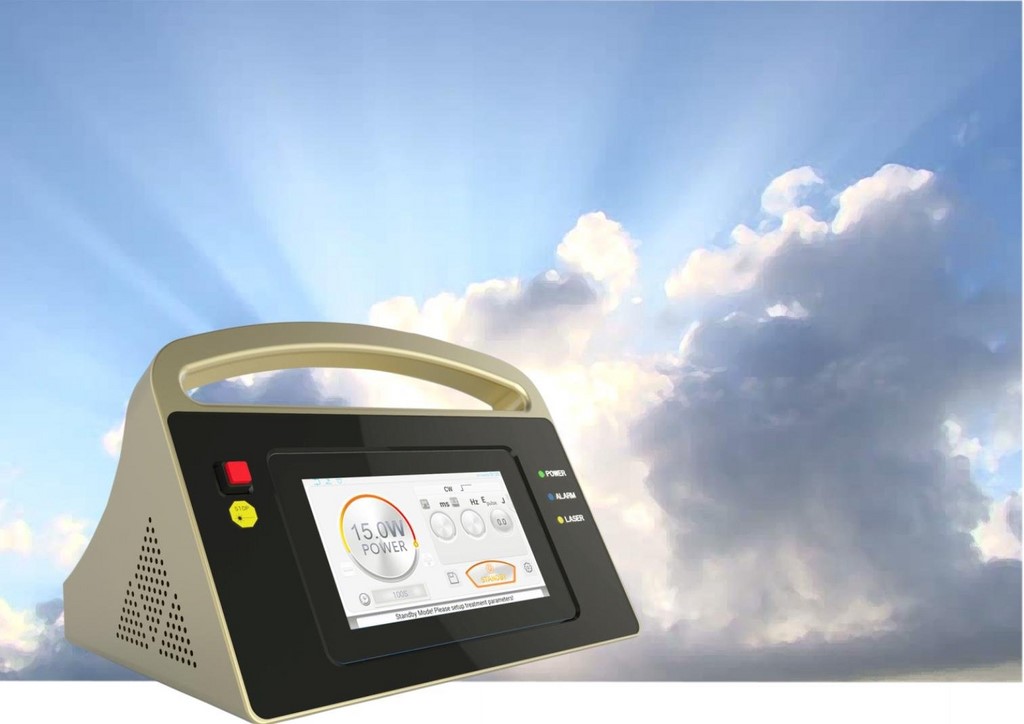

Mercury G5laser diode 980nm 15WDentistry: implantology, periodontal lesions, ulcers, pulpotomy, frenectomy, tooth whitening
ORL: polyps, cones, tonsils, epistaxis, paracentesis, DCR, vocal cords, larynx, Otology, caliper, stapedectomy, terminology salivary, lacrimal glands, soft tissue surgeryTechnical specifications:
Laser Diode: Type AsGa wavelength: 980 nm
Divergence: ≤ 25 mrad stability: ≤ + 10%
Power: Variable from 0 to 15W adjustable in steps of 0.1 W
Laser guide: 650 nm, 2 mW, adjustable red led
Fiber Optics: standard SMA 905 connector
compatible diameters: 200/300/400/600/800/1000μ
Standard configuration: fiber sheathed with handpiece, 10 tips to use unique 400µ.
Fiber optic recoupable and sterilisable 400μ
Control screen: HD color LCD screen, 7 in touchscreen.
Menu: Languages French / English, brightness, sounds
Security and alarms: fiber, interlock, pedal
Mode of operation: continuous, pulse, Repeat Pulse:
Time we: 1 μs - 1000 ms
OFF time: 1 μs - 1000 ms
Frequency: 1-20 kHz
Shooting: Triggered by pedal wireless WIFI
Cooling: Semiconductor WIP by forced ventilation
Power unit: 12V - 20V DC
Power supply: AC 110 V - 240 V / 50-60 Hz
Temperature: 5-40 ° C humidity: ≤80%
Dimensions: 300 x 220 x 200 (mm)
Weight: 2.7 Kg
Medical class: IIIB
Laser class: IV
Certification C€: 0197
Warranty: 2 years parts and labor
Dentistry: implantology, periodontal lesions, ulcers, pulpotomy, frenectomy, tooth whitening
ORL: polyps, cones, tonsils, epistaxis, paracentesis, DCR, vocal cords, larynx, Otology, caliper, stapedectomy, terminology salivary, lacrimal glands, soft tissue surgery
ORL: polyps, cones, tonsils, epistaxis, paracentesis, DCR, vocal cords, larynx, Otology, caliper, stapedectomy, terminology salivary, lacrimal glands, soft tissue surgery
Technical specifications:
Laser Diode: Type AsGa wavelength: 980 nm
Divergence: ≤ 25 mrad stability: ≤ + 10%
Power: Variable from 0 to 15W adjustable in steps of 0.1 W
Laser guide: 650 nm, 2 mW, adjustable red led
Fiber Optics: standard SMA 905 connector
compatible diameters: 200/300/400/600/800/1000μ
Standard configuration: fiber sheathed with handpiece, 10 tips to use unique 400µ.
Fiber optic recoupable and sterilisable 400μ
Control screen: HD color LCD screen, 7 in touchscreen.
Menu: Languages French / English, brightness, sounds
Security and alarms: fiber, interlock, pedal
Mode of operation: continuous, pulse, Repeat Pulse:
Time we: 1 μs - 1000 ms
OFF time: 1 μs - 1000 ms
Frequency: 1-20 kHz
Shooting: Triggered by pedal wireless WIFI
Cooling: Semiconductor WIP by forced ventilation
Power unit: 12V - 20V DC
Power supply: AC 110 V - 240 V / 50-60 Hz
Temperature: 5-40 ° C humidity: ≤80%
Dimensions: 300 x 220 x 200 (mm)
Weight: 2.7 Kg
Medical class: IIIB
Laser class: IV
Certification C€: 0197
Warranty: 2 years parts and labor
Laser Diode: Type AsGa wavelength: 980 nm
Divergence: ≤ 25 mrad stability: ≤ + 10%
Power: Variable from 0 to 15W adjustable in steps of 0.1 W
Laser guide: 650 nm, 2 mW, adjustable red led
Fiber Optics: standard SMA 905 connector
compatible diameters: 200/300/400/600/800/1000μ
Standard configuration: fiber sheathed with handpiece, 10 tips to use unique 400µ.
Fiber optic recoupable and sterilisable 400μ
Control screen: HD color LCD screen, 7 in touchscreen.
Menu: Languages French / English, brightness, sounds
Security and alarms: fiber, interlock, pedal
Mode of operation: continuous, pulse, Repeat Pulse:
Time we: 1 μs - 1000 ms
OFF time: 1 μs - 1000 ms
Frequency: 1-20 kHz
Shooting: Triggered by pedal wireless WIFI
Cooling: Semiconductor WIP by forced ventilation
Power unit: 12V - 20V DC
Power supply: AC 110 V - 240 V / 50-60 Hz
Temperature: 5-40 ° C humidity: ≤80%
Dimensions: 300 x 220 x 200 (mm)
Weight: 2.7 Kg
Medical class: IIIB
Laser class: IV
Certification C€: 0197
Warranty: 2 years parts and labor
